Forcibly guided contacts
The contacts are mechanically linked. These relays use special features to ensure the make contacts (normally open) cannot assume the same state as the break contacts (normally-closed).
RCG|2 C/O - 10 A
PRODUCT NOTICE
Relay cover change
For more information click here
- Forcibly guided contacts (weld-no-transfer), relay compliant with EN61810-3, type A.
- Compact plug-in instantaneous relays, with 2 changeover contacts, 10 A
- Can be used for safety applications, suitable for rolling stock
- Solid and rugged construction for intensive duty, IP50 protection
- Self-cleaning knurled contacts
.jpg)
RDG|4 C/O - 10 A
PRODUCT NOTICE
Relay cover change
For more information click here
- Forcibly guided contacts (weld-no-transfer), relay compliant with EN61810-3, type A.
- Compact plug-in instantaneous relays, with 4 changeover contacts, 10 A
- Can be used for safety applications, suitable for rolling stock
- Solid and rugged construction for intensive duty, IP50 protection
- Self-cleaning knurled contacts
.jpg)
RGG|4 C/O - 12 A
PRODUCT NOTICE
Relay cover change
For more information click here
- Forcibly guided contacts (weld-no-transfer), relay compliant with EN61810-3, type A
- Instantaneous plug-in relays with 4 changeover contacts, 12 A
- Can be used for safety applications, suitable for rolling stock
- Very high electrical life expectancy, exceptional endurance, optional magnetic arc blow-out
- Self-cleaning knurled contacts
.jpg)
RGK|4 C/O - 12 A
PRODUCT NOTICE
Relay cover change
For more information click here
- Forcibly guided (mechanically linked) contacts, relays compliant with EN 61810-3, type A
- Plug-in, timed relays “pick-up” or “drop-out”, whit 4 C/O contacts, 12 A
- Wide time setting range from 0.1s to more than 16 hours
- Can be used for safety applications, suitable for rolling stock
- Very high electrical life expectancy and exceptional endurance
- Self-cleaning knurled contacts
.jpg)
RMGX|6 C/O + 2 NO - 10 A
- Forcibly guided contacts (weld-no-transfer), relay compliant with EN61810-3, type A
- Instantaneous plug-in relays with 8 changeover contacts, 12 A
- Can be used for safety applications, suitable for rolling stock
- Very high electrical life expectancy, exceptional endurance, optional magnetic arc blow-out
- Self-cleaning knurled contacts
.jpg)
Latching
Relay with 2 latched contact positions. The contacts change state with an electrical pulse supplied by one of the 2 power coils. To restore the starting position of the contacts, the other coil must be powered.

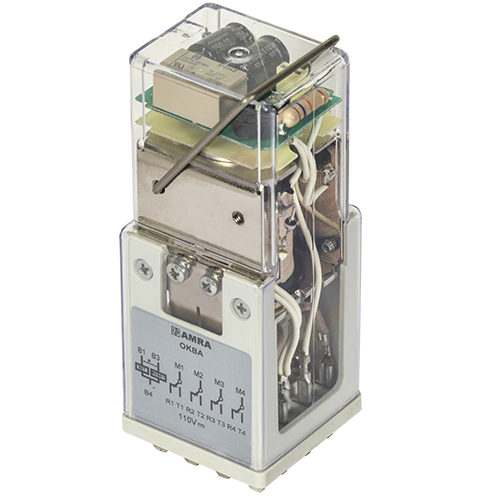

OKBA|4-8 C/O - 10 A
- Plug-in bistable relay with 4 contacts, 10 A, with magnetic arc blow-out
- Solid and rugged construction for intensive duty
- Automatic de-energization following operation, magnetic latch
- Excellent shock and vibration resistance
- Ample clearance between open contact elements, 5 kV insulation
.jpg)

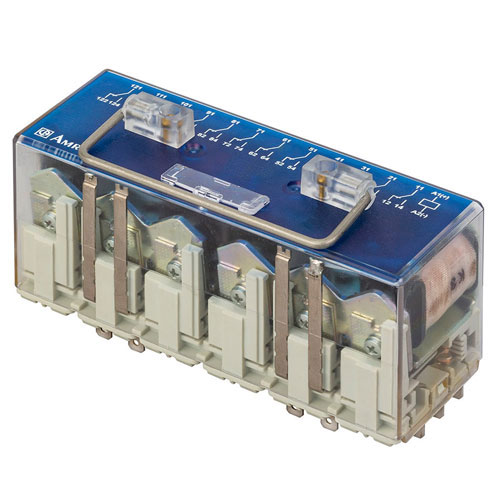

BAS8|8 C/O - 10 A
OBSOLET PRODUCT
alternative product RMBx series
The RMBx relay is not interchangeable with the BAS8 model.
Please consult the technical documentation for more information or contact AMRA.
- Compact plug-in bistable relays, with 8 contacts, 10 A
- Magnetic arc blow-out as standard
- Automatic de-energization following operation, magnetic latch
- Excellent shock and vibration resistance
.jpg)

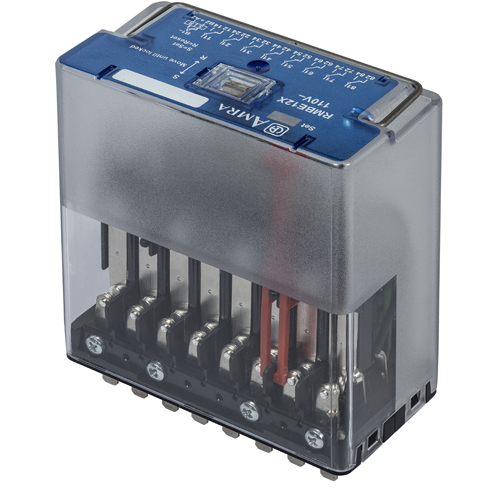

RMBX|7 C/O o 8 C/O - 10 A
- Plug-in latching instantaneous relays with 8 contacts, 10 A
- More compact dimensions
- Automatic de-energization following operation, magnetic latch
- Solid and rugged construction for intensive duty
- Very high electrical life expectancy and exceptional endurance
- Self-cleaning knurled contacts
Instantaneous, monostable
The contacts change position instantaneously when the relay is powered and return instantaneously to their initial position when power is shut off.
POK|2 C/O - 5 A
- Compact instantaneous plug-in relays with 2 contacts, 5 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites

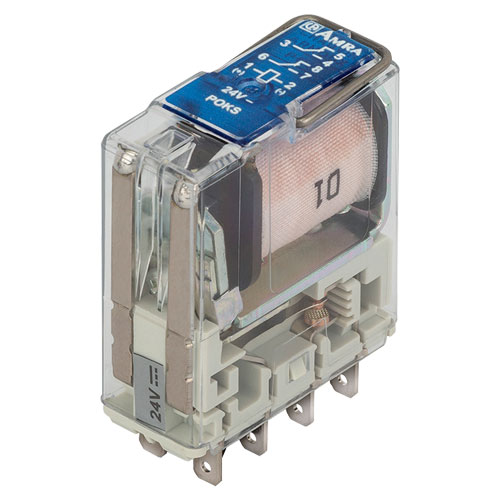

POKS|2 C/O - 10 A
- Compact instantaneous plug-in relays with 2 contacts, 10 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites

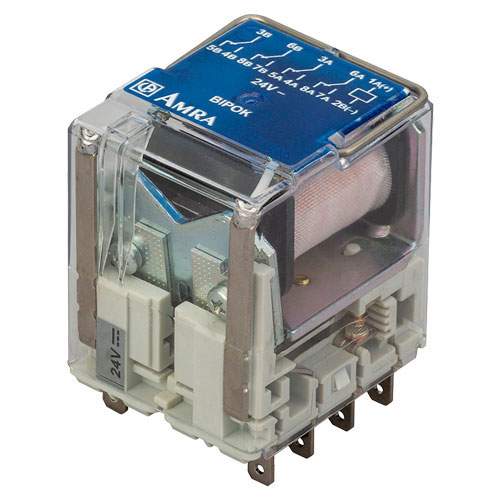

BIPOK|4 C/O - 5 A
- Compact instantaneous plug-in relays with 4 contacts, 5 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites
BIPOKS|4 C/O - 10 A
- Compact instantaneous plug-in relays with 4 contacts, 10 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites
TRIPOK|6 C/O - 5 A
- Compact instantaneous plug-in relays with 6 contacts, 10 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites

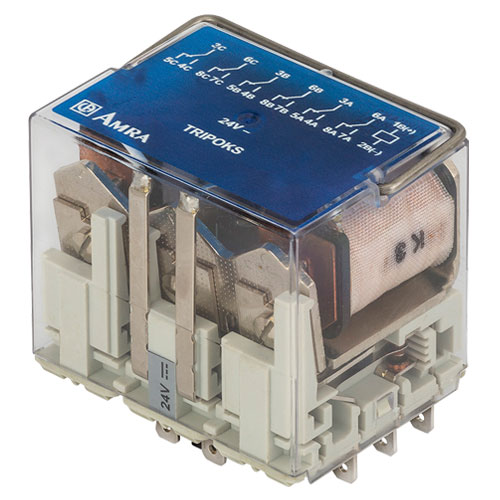

TRIPOKS|6 C/O - 10 A
- Compact instantaneous plug-in relays with 6 contacts, 10 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites

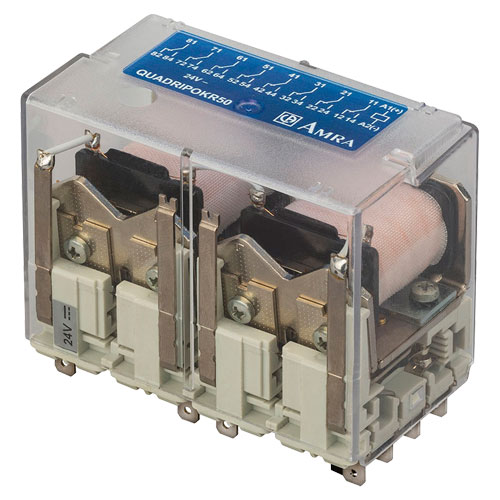

QUADRIPOK|8 C/O - 10 A
- Compact instantaneous plug-in relays with 8 contacts, 10 A
- Magnetic arc blow-out as standard
- Excellent shock and vibration resistance, suitable for rolling stock
- Option available for use in geothermal sites

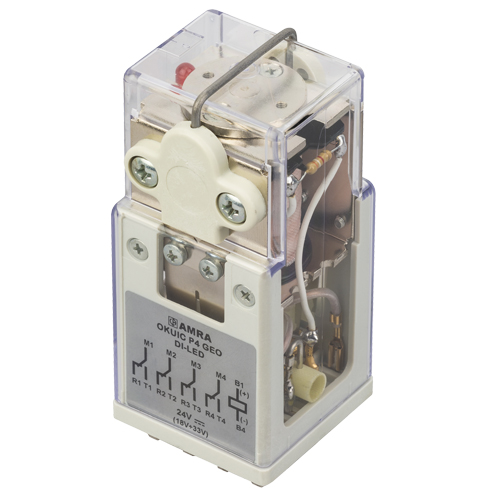

OKUIC|4 C/O - 10 A
- Plug-in relay with 4 instantaneous contacts, 10 A, with magnetic arc blow-out
- Suitable for rolling stock applications
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance, suitable for rolling stock
- Ample clearance between open contact elements, 5 kV insulation
.jpg)

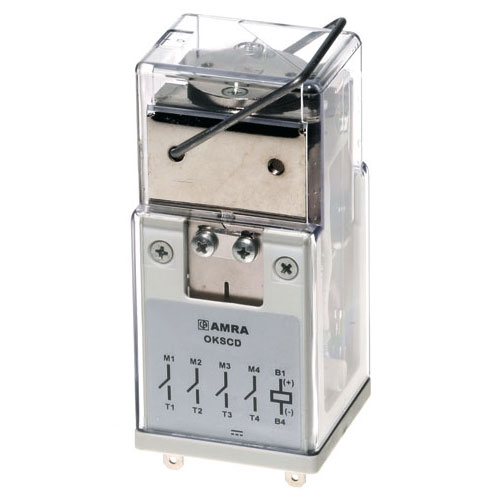

OKSCD|4 C/O - 10 A
- Plug-in relays with 4 instantaneous contacts, 10 A
- Magnetic arc blow-out and silver cadmium oxide contacts
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance
- Ample clearance between open contact elements, 5 kV insulation

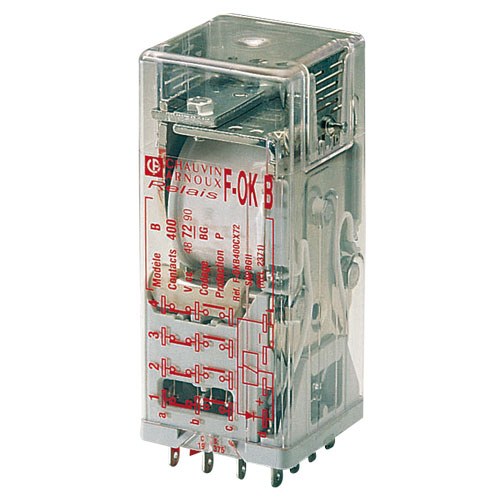

FOKB|4 C/O - 10 A
- Plug-in relay with 4 instantaneous contacts, 10 A, double breaking
- SNCF approval, NF-F 62002 compliant
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance, suitable for rolling stock
- Ample clearance between open contact elements
Time delayed, pick-up, drop-out, logic
The contacts change status with time delay T with respect to the energization or de-energization of the relay input circuit. Logical function relays can be used for various functions, including CYCLIC, ONE-SHOT, etc.

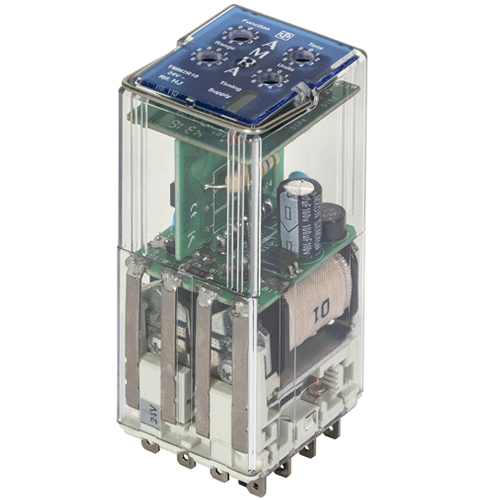

TMM2|2 IS + 2T C/O - 10 A
- Multifunction plug-in relays with time delay
- 2 timer contacts + 2 instantaneous contacts, 10 A
- 10 programmable time delay functions
- Time setting from 0.1s to 99.9h, by means of rotary-switch preset controls
- Excellent shock and vibration resistance, suitable for rolling stock
.jpg)
TMM4|4 C/O - 10 A
- Multifunction plug-in relays with time delay
- 4 timer contacts, 10 A
- 10 programmable time delay functions
- Time setting from 0.1s to 99.9h, by means of rotary-switch preset controls
- Excellent shock and vibration resistance, suitable for rolling stock
.jpg)

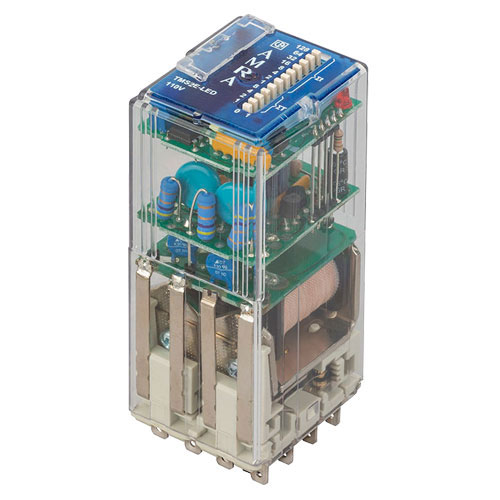

TM2E TMS2E|2 IS+ 2T C/O - 5 A
- Plug-in relay with time delay on pick-up
- 2 timer contacts + 2 instantaneous contacts, 5 A (TM2E) or 10 A (TMS2E)
- Time setting from 0.1s to more than 9 hours by means of dip switches
- Excellent shock and vibration resistance, suitable for rolling stock
TM4E TMS4E|4 C/O - 5 A
- Plug-in relay with time delay on pick-up
- 4 timer contacts, 5 A (TM4E) or 10 A (TMS4E)
- Time setting from 0.1s to more than 9 hours by means of dip switches
- Excellent shock and vibration resistance
TM2R TMS2R|2 IS + 2T C/O - 5 A
- Plug-in relays with time delay on drop-out
- 2 timer contacts + 2 instantaneous contacts, 5 A (TM2R) or 10 A (TMS2R)
- Time setting from 0.1s to more than 9 hours by means of dip switches
- Excellent shock and vibration resistance, suitable for rolling stock
TM4R TMS4R|4 C/O - 5 A
- Plug-in relays with time delay on drop-out
- 4 timer contacts, 5 A (TM4R) or 10 A (TMS4R)
- Time setting from 0.1s to more than 9 hours by means of dip switches
- Excellent shock and vibration resistance, suitable for rolling stock
TOKE|4 C/O - 10 A
- Plug-in relays with time delay on pick-up, 4 contacts, 10 A
- Time setting from 0.1s to more than 1 hour by means of potentiometer
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance, suitable for rolling stock
- Ample clearance between open contact elements, 5 kV insulation

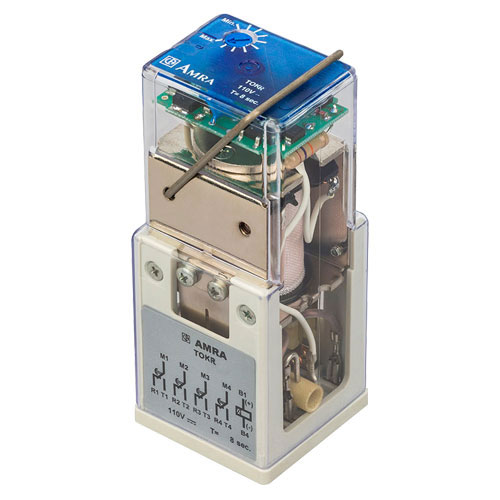

TOKR|4 C/O - 10 A
- Plug-in relays with time delay on drop-out, 4 contacts, 10 A
- Time setting from 0.1s to more than 1 hour by means of potentiometer
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance, suitable for rolling stock
- Ample clearance between open contact elements, 5 kV insulation

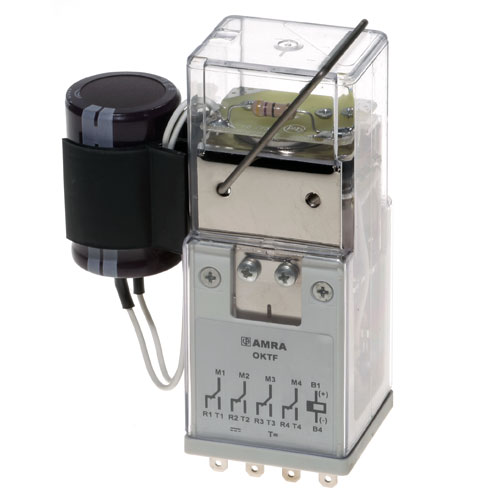

OKTF|4 C/O - 10 A
- Plug-in relays with time delay on drop-out, without auxiliary power supply
- 4 timer contacts, 10 A
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance
- Ample clearance between open contact elements, 5 kV insulation

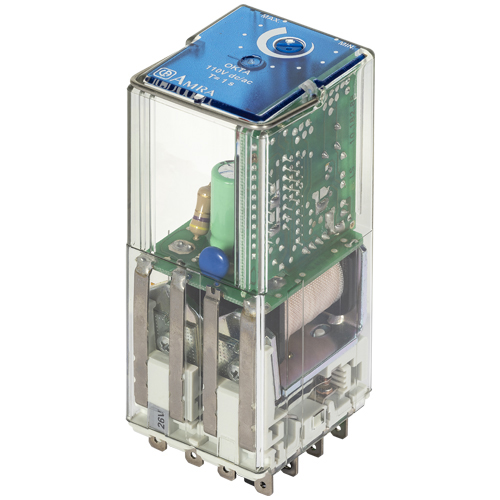

OKTA|4 C/O - 5 A
- Plug-in relay with time delay on pick-up
- 4 timer contacts, 5 A
- Time setting from 0.1s to 60 minutes by means of potentiometer
- Excellent shock and vibration resistance, suitable for rolling stock
.jpg)

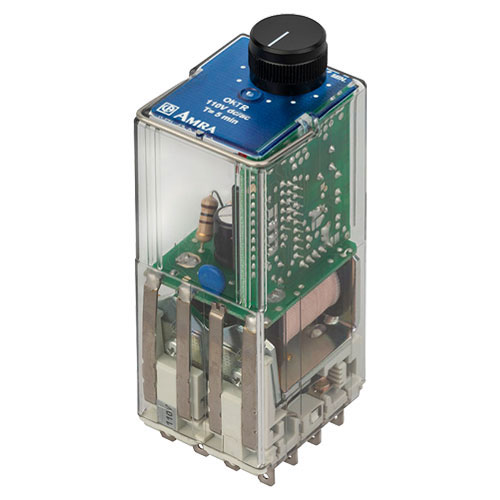

OKTR|3 C/O - 5 A
- Plug-in relays with time delay on drop-out
- 3 timer contacts, 5 A
- Time setting from 0.1s to 60 minutes by means of potentiometer
- Excellent shock and vibration resistance, suitable for rolling stock
OKRE|4 C/O - 5 A
- Plug-in relay with time delay on pick-up
- 4 timer contacts, 5 A
- Time setting from 0.1s to 60 minutes by means of potentiometer
- Excellent shock and vibration resistance
OKRR|4 C/O - 5 A
- Plug-in relays with time delay on drop-out
- 4 timer contacts, 5 A
- Time setting from 0.1s to 60 minutes by means of potentiometer
- Excellent shock and vibration resistance

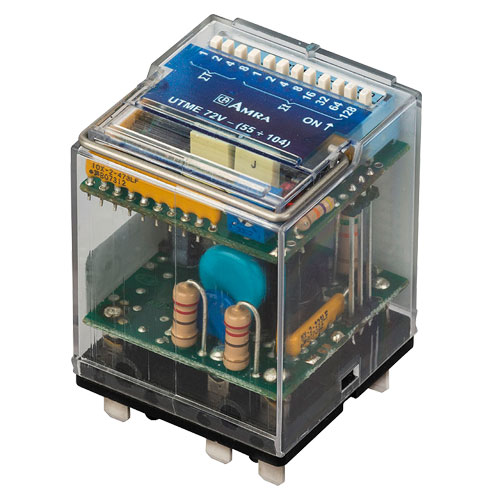

UTME|Timer Unit
- Static timer unit
- Time delay on pick-up
- 2 outputs available: timed output and instantaneous output
- Time setting from 0.1s to more than 9 hours by means of dip switches
UTMR|Timer Unit
- Static timer unit
- Time delay on drop-out
- 2 outputs available: timed output and instantaneous output
- Time setting from 0.1s to more than 9 hours by means of dip switches
TOK-L|4 C/O - 10 A
- Plug-in relays with flasher function, 4 contacts, 10 A
- Time setting from 0.1s to more than 1 hour by means of potentiometer
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance, suitable for rolling stock
- Ample clearance between open contact elements, 5 kV insulation
OKRE-L|4 C/O - 5 A
- Plug-in relays, with cyclic symmetrical flasher function
- 4 timer contacts, 5 A
- Time setting from 0.1s to 60 minutes by means of potentiometer
- Excellent shock and vibration resistance, suitable for rolling stock
TOK-FP|4 C/O - 10 A
- Plug-in relays with one-shot function, 4 contacts, 10 A
- Time setting from 0.1s to more than 1 hour by means of potentiometer
- Solid and rugged construction for intensive duty, 100,000,000 operations
- Excellent shock and vibration resistance, suitable for rolling stock
- Ample clearance between open contact elements, 5 kV insulation
OKRE-FP|4 C/O - 5 A
- Plug-in relays with one-shot function
- 4 timer contacts, 5 A
- Time setting from 0.1s to 60 minutes by means of potentiometer
- Excellent shock and vibration resistance, suitable for rolling stock

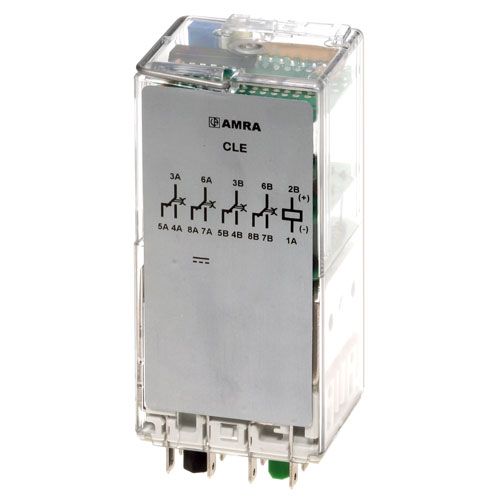

CLE|4 C/O - 5 A
- Plug-in relays, with cyclic symmetrical flasher function
- 4 timer contacts, 5 A
- Fixed flash from 55 to 90 pulses/min
- Excellent shock and vibration resistance, suitable for rolling stock
RGK|4 C/O - 12 A
PRODUCT NOTICE
Relay cover change
For more information click here
- Forcibly guided (mechanically linked) contacts, relays compliant with EN 61810-3, type A
- Plug-in, timed relays “pick-up” or “drop-out”, whit 4 C/O contacts, 12 A
- Wide time setting range from 0.1s to more than 16 hours
- Can be used for safety applications, suitable for rolling stock
- Very high electrical life expectancy and exceptional endurance
- Self-cleaning knurled contacts
Measurement
The contacts change status for a defined input power value.
MOK-V2|2 C/O - 8 A
- Plug-in measuring relay, voltage threshold type, 2 contacts
- Pick-up and drop-out thresholds adjustable with two independent potentiometers
- Electronic circuit with no need for an auxiliary power supply
- Excellent shock and vibration resistance, suitable for rolling stock
OKPH|1 C/O - 4 A
- Plug-in relay for monitoring the directional sequence of 3-phase voltages
- 1 N.O. contact
- Fixed hysteresis cycle
